How To Fix Network Password Dialog Pop-up Error in Outlook 2010?

Sometimes, you may encounter the problem of “Enter Network Password Dialog” error while configuring Gmail on Outlook 2010. The network password dialog keeps popping up even after you enter username and password.

Why does “Pop-up” error happen?

There are two possible reasons of “Enter Network Password Dialog” error.

  1. You are on a network and configured your Gmail on Outlook successfully, but it keeps popping up because you have not saved the same credentials on outgoing server settings of Outlook.
  2. You have changed your password, but not saved the new one in Outlook. To prevent the unauthorized sending of emails, it displays a pop-up dialog that requests your email-id and password each time you try to send an e-mail.
Enter Network Password Dialog in Outlook
Windows Security Dialog Box


Here is one of the solution to fix this problem. We will configure Microsoft Outlook 2010 manually for Gmail. These are the settings you will need to use –

Step 1: Open Outlook to configure Gmail account again.
Outlook 2010 Startup Window

Step 2: Enter the Gmail account details & Select Manually Configure Server Setting or additional server types option.
Manually Configure Server Settings in Outlook

Step 3:  Select Internet E-mail option & click on next.
Internet Email Option in Outlook

Step 4:  Enter the Incoming & Outgoing mail server details & Select the More Setting option.
Incoming and Outgoing severs

Step 5:  Select Log on using option and enter user name and password details. Click on Remember Password option.
SMTP outgoing server settings in outlook

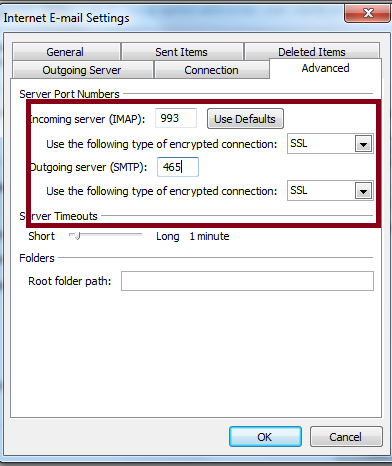

Step 6: Click on Advanced tab and enter the port details as below.
IMAP Port : 993 and  SMTP Port: 465
server port numbers in outook

Step 7: Re-start Outlook. It will not show the network password dialog popup again & your Gmail account configure successfully.

Have you any experience with this issue and how you fixed? Please share in comments.
